Upgrade to FAAC Automatic Gates at Willowtree Primary School

The vehicle automatic gates have been designed for vehicle access only,Pedestrians have been diverted away from the automated vehicle entrance by directing pedestrians to a single automated single pedestrian gate entrance.

Completion Date: 14/05/19
Project Duration: 1 Week

Scope of works:

  • Automation upgrade of the existing vehicle entrance gates
  • Automation upgrade of the existing single pedestrian gate
  • Installation of Paxton Net2 access control
  • Installation of a Bell Systems audio intercom
StBridgettes 4382
StBridgettes 4382
StBridgettes 4382

Willowtree Primary School – FAAC Automatic Gate Upgrade

Mere UK  completed and commissioned the automatic vehicle entrance and automatic pedestrian entrance upgrade at Willowtree Primary school in St.Helens.

A  ‘Ritherdon’ enclosure has been installed to allow the the control equipment of the system to be local to the gates.

A dedicated 240v supply has been installed.

Automatic vehicle gates

These automatic gates have been designed to not allow pedestrian access so Pedestrians have been diverted away from the automated vehicle entrance by directing pedestrians to a single automated single pedestrian gate entrance.

The vehicle gate has been installed with 2 x FAAC automatic gate operators controlled via a FAAC E145 control panel.

Entry through the vehicle gate to the site is controlled by a Paxton Net2 Access control system for staff and a bell systems intercom has been installed for visitors and deliveries to gain access that is monitored from the schools reception.

Exit from the school vehicle gates is obtained by the use of vehicle induction floor loops installed in the secure area.

An over-ride key switch has been installed to allow for the vehicle gates to be over-ridden.

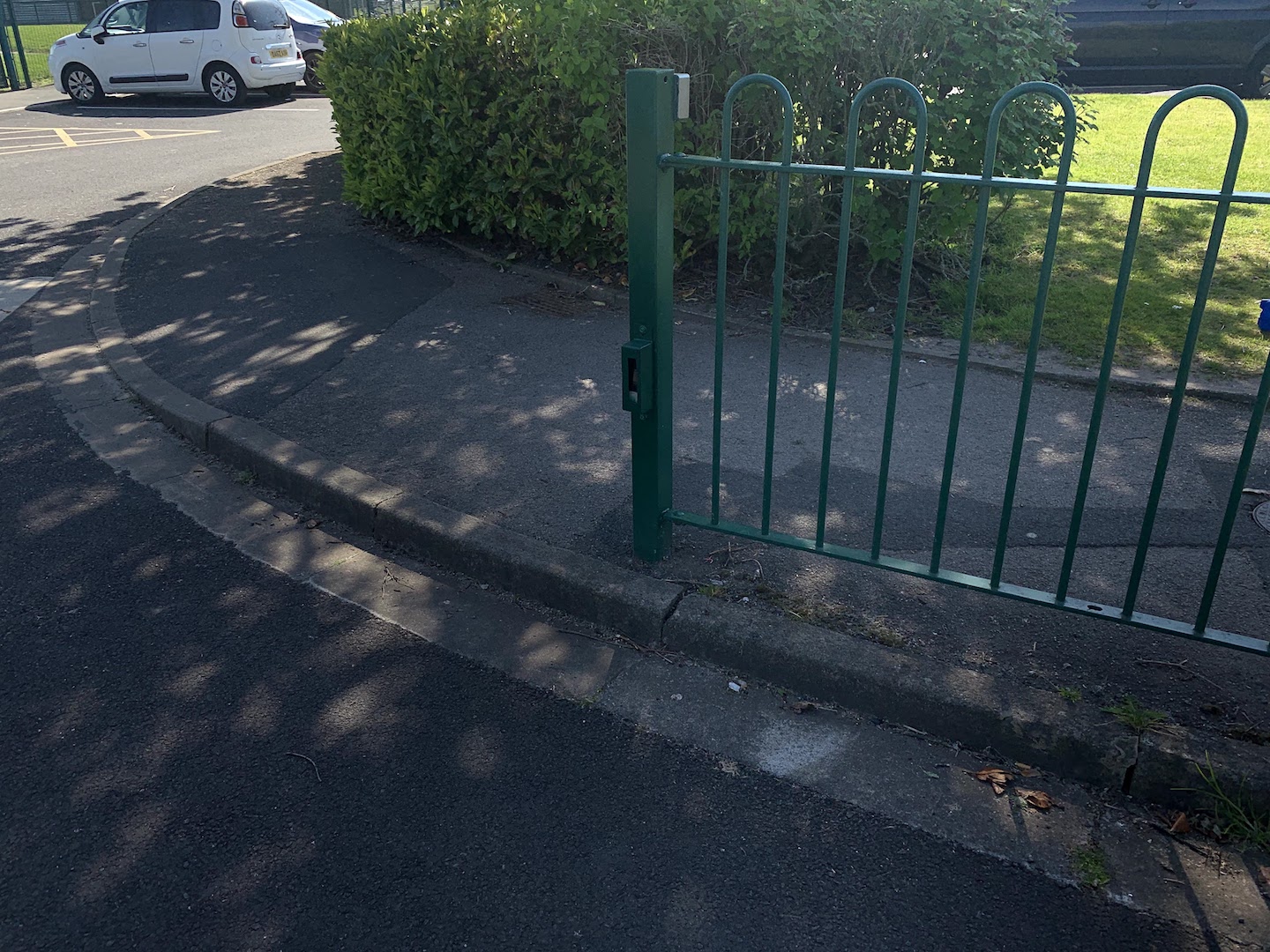

Automatic pedestrian gate

This automatic gate have been designed to allow pedestrian access so Pedestrians have been diverted away from the automated vehicle entrance by directing pedestrians to a single automated single pedestrian gate entrance.

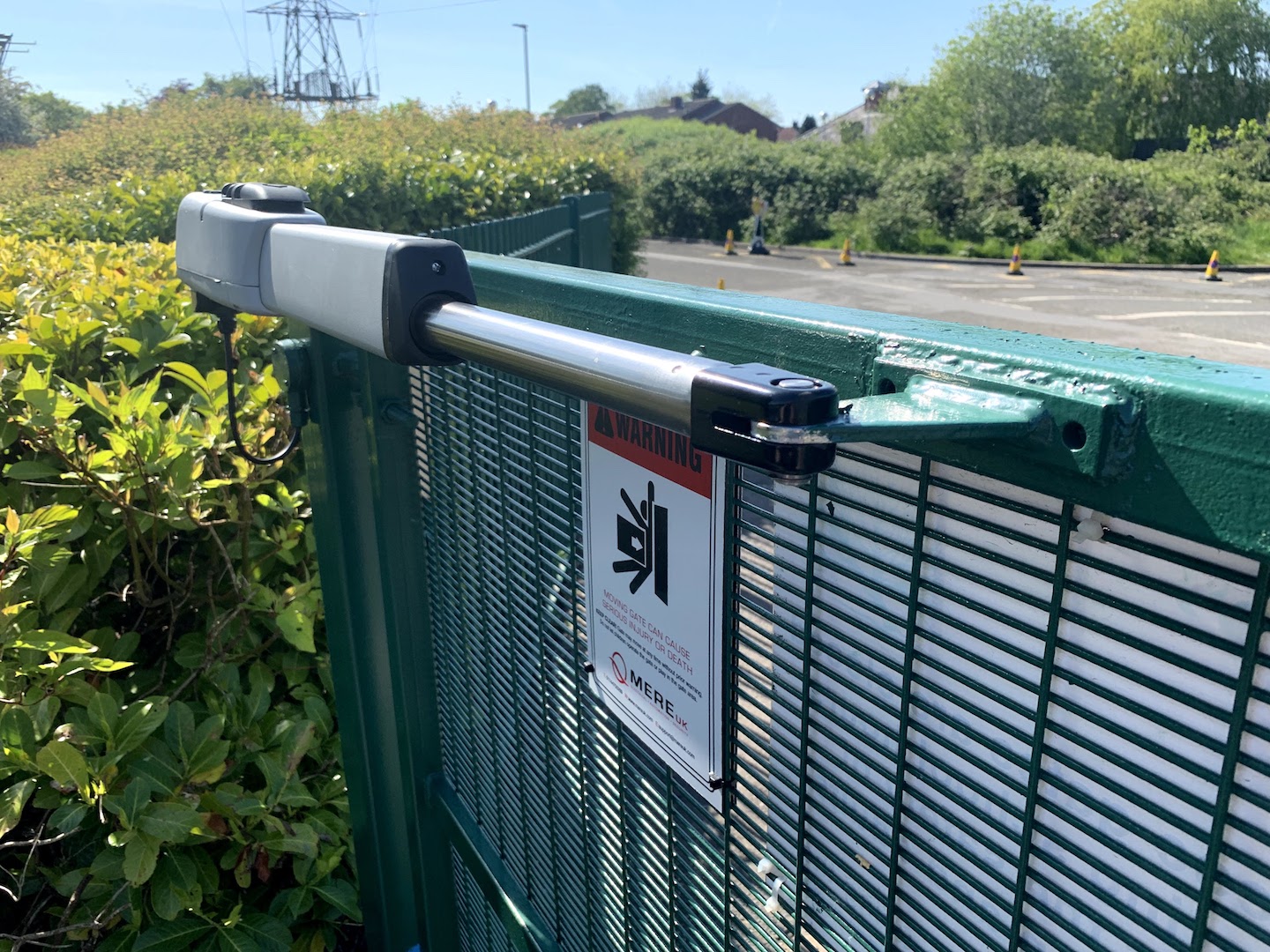

The pedestrian gate has been installed with a FAAC automatic gate operator controlled via a FAAC E145 control panel.

Entry through the vehicle gate to the site is controlled by a Paxton Net2 Access control system for staff and a bell systems intercom has been installed for visitors and deliveries to gain access that is monitored from the schools reception.

Exit from the school pedestrian gate is obtained by the use of a weather proof exit dome button located on a high visibility pedestal.

An over-ride key switch has been installed to allow for the pedestrian gates to be over-ridden.

Mere (UK) are safety trained and Conform to~

  • Machine Directive 2006/42/EEC
  • BS EN12453 – Safety use of power operated doors requirements
  • BS EN12445 – Safety use of power operated doors test methods
  • BS EN12978 – Safety edges
  • BS EN12445 – Force testing
